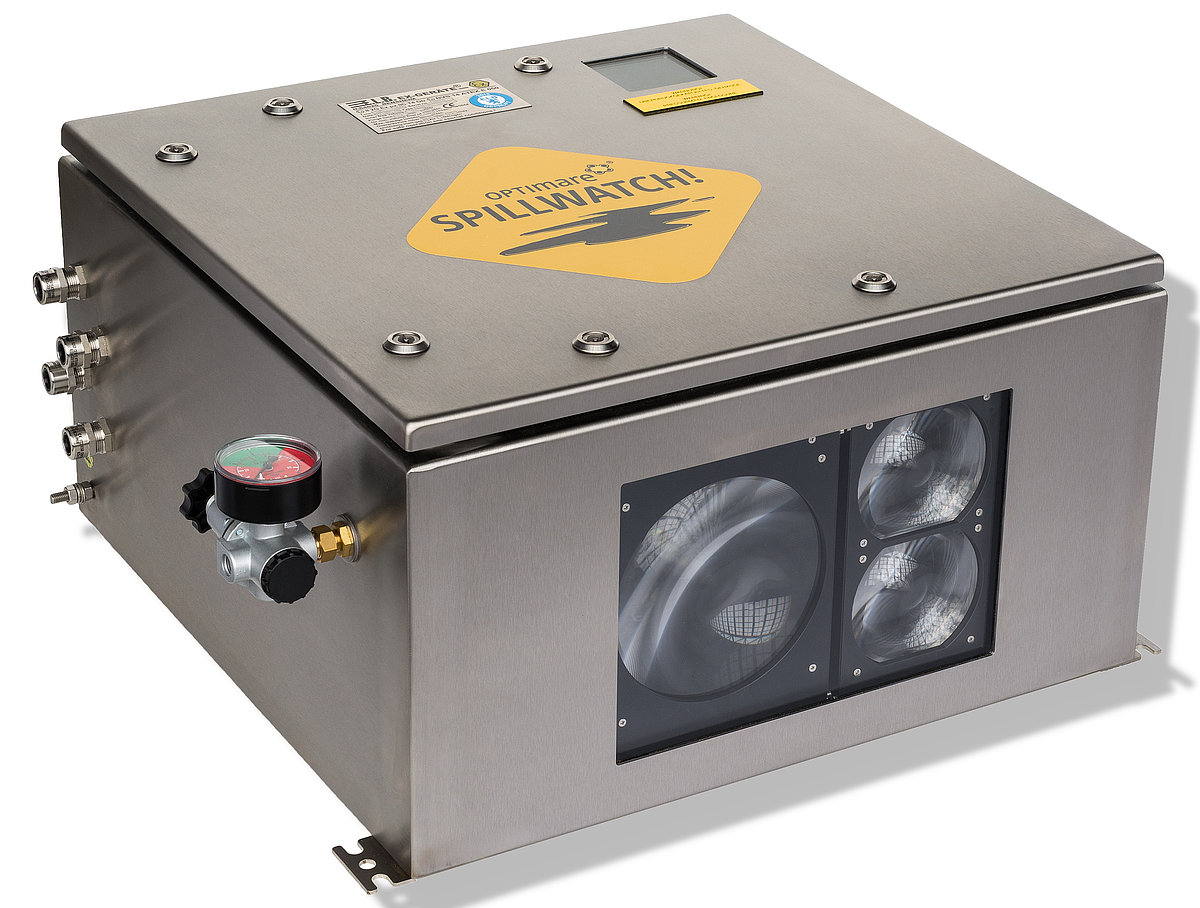

The OPTIMARE SpillWatch!® LR is a non-contact, optical sensor for real-time around-the-clock detection of oil leaks and spills for various industrial applications. A timely alert enables countermeasures not only limiting damage to the environment but also reducing cost for remediation and clean-up.
The OPTIMARE SpillWatch!® LR sensor is installed downward-looking, up to 30 meters above the surface. We also offer the standard variant OPTIMARE SpillWatch!® for a reduced measurement distance of up to 10 meters.
If you have questions please get in touch with us.
Handout OPTIMARE SpillWatch!® LR
Typical application areas include
- Offshore oil platforms
- Tank farms
- Pipelines, pump stations
- Ports, oil terminals
- Power plants
- Desalination, intake protection
- Process water
- Runoff water from industrial plants
- Petro-chemical plants

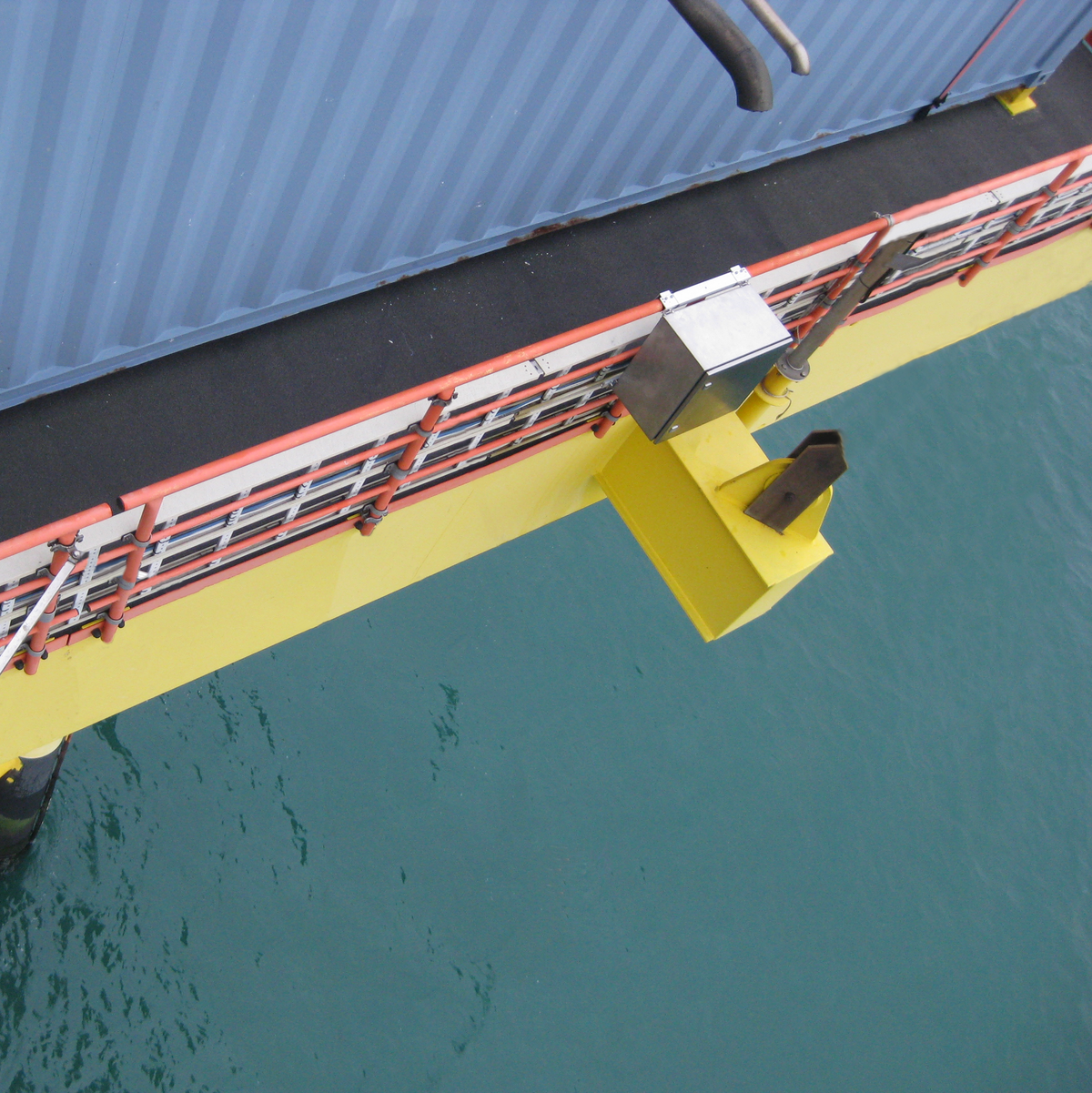

Due to its detection range of up to 30 meters the OPTIMARE SpillWatch!® LR system is especially suited for installation on oil rigs. The system is designed and manufactured for deployment in rugged settings.
- Highly effective LED-based excitation
- Based on fluorescence excitation and detection
- Ruggedized design (IP66)
- Cost-effective, low-maintenance
- Multiple interfaces
The sensor technology is based on fluorescence excitation and detection. Its innovative optical set-up and all-solid-state opto-electronic components guarantee high sensitivity and allow low-maintenance operation. The system automatically filters out ambient conditions (e.g. sunlight), providing highly reliable detection under all light, weather and surface conditions.
